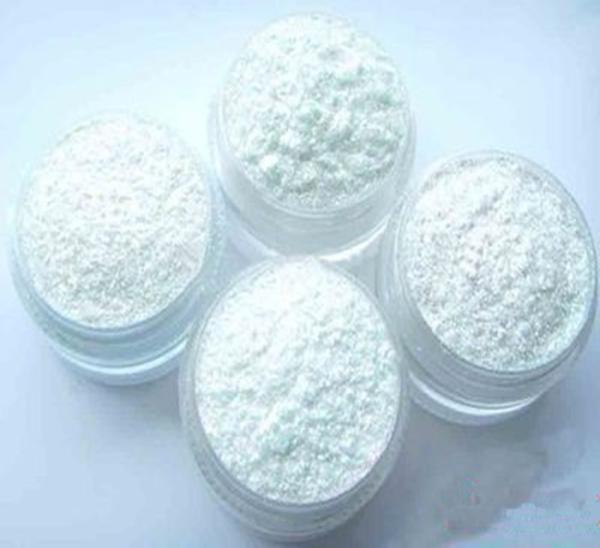

White High Purity 99.9% 0.7 Micron Alumina Powder

0.7 micron alumina powder for Lithium ion battery separator

Lithium ion batteries have emerged as the most popular energy storage system, but they pose safety issues under extreme temperatures or in the event of a thermal runaway. Lithium ion batteries with inorganic separators offer the advantage of safer operation.Unlike state-of-the-art polyolefin separators such as polypropylene (PP) which are selectively wettable with only certain electrolytes, the excellent electrolyte solvent wettability of α-Al₂O₃ allows the coated alumina separator to function with different electrolytes. The coated α-Al₂O₃ separator has a much higher resistance to temperature effects than its polyolefin counterparts, retaining its dimensional integrity at temperatures as high as 200ºC.

This eliminates the possibility of a short circuit during thermal runaway. Lithium ion batteries assembled as half-cells and full cells with coated α-Al₂O₃ separator exhibit electrochemical performance comparable with that of polyolefin separators at room temperature. However, the cells with coated alumina separator shows better cycling performance under extreme temperatures in the temperature range of -30°C to 60°C. Therefore, the coated α-Al₂O₃ separator is very promising for application in safe lithium-ion batteries.

【Application】

It is mainly used for the coating material of positive and negative pole diaphragm of lithium battery, which is beneficial to the stability of the battery.

It is suitable for Lithium ion battery separator, and the battery can be used for electronic car, electronic intelligent products and energy storage products.

【Specification】

1. Chemical properties: Al₂O₃>99.9%

2. Color:white

3. PSD: D50=0.5-0.8um,D99<4um

【Product features】

Lithium ion batteries with alumina separator is fabricated for safety improvement.Alumina separator is coated on electrode by a scalable and cost-effective method.Lithium ion batteries with alumina separator perform better than conventional cells.

The alumina ceramic coating provides a skeleton for the flexible seperator, improves the wear resistance of the seperator, prevents lithium dendrite from piercing, reduces heat shrinkage, improves temperature resistance, and the pores are stable with temperature, which can effectively improve the safety performance of the battery

1. Less magnetic foreign matters, stable electrical performance, low content of harmful ions;

2. High heat resistance, stable at high temperature;

3. The particle size distribution is very narrow, which can be coated with a very thin thermal insulation coating, with low thermal resistance; no small particles blocking Li + ion channel, no coarse particles scratching the film.

【Packing】 25kgs/poly-drum ,500kgs/pallet.

1 Q:What's the guarantee ?
A:Our guarantee for 12 months.18 hours' technical support by email, video or calling

2 Q:Do you provide equipment operation training?
A:Yes. We can will send one or two professional technicians (one is electrical engineer, one is mechanical engineer) to install and adjust the machines and help train the workers.

3 Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. Or it is 15-20 days if the goods are not in stock, it is according to quantity.

4 Q: How about the packing?
A:Usually we provide the packing as 50 kg Iron Drum or 25 plastic Drum ,if you have special requirements on them, we will according to you

Shanghai Gona Industrial Co.Ltd is founded in 2006, and located in Songjiang Industrial District, rounded by National Engineering research Center of Ultrafine Powder(NERCUP).Our company is a R&D company specialized in technology development of functional powder materials.

Our company has been recognized as “High-Tech Enterprise of Shanghai” since 2008. The project of the high-precision rare earth polishing powder passed high-tech achievements transformation, and its annual production reaches 2000 tons.
